Chronic Total Occlusions

Chronic Total Occlusions (CTOs) are complete blockages of the coronary arteries that have been present for more than three months, often requiring specialized treatment techniques.

ABOUT THE SERVICE

Chronic Total Occlusions

Chronic total occlusion is a complete or nearly complete blockage of one or more coronary arteries either the left main or right coronary artery. One of the arteries that delivers oxygen-rich blood to your heart has become completely blocked or occluded for three months or longer buildup of plaque within a coronary artery. When this happens, blood flow to the heart is compromised. CTO is a common heart disorder in patients with coronary artery disease.Between 20 and 25 percent of patients with coronary artery disease also have a chronically blocked artery.
According to the National Academy of Medicine, about 99 percent of your body’s calcium is in your teeth and bones. The other 1 percent is in the blood, muscles, fluid outside the cells, and other body tissues.

Without treatment a CTO can lead to:

  • ✓ Chest pain (called angina)
  • ✓ Shortness of breath
  • ✓ Fatigue
  • ✓ Inability to participate in many normal daily activities

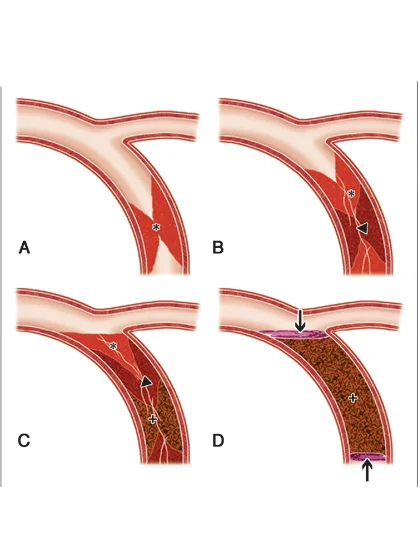

PCI

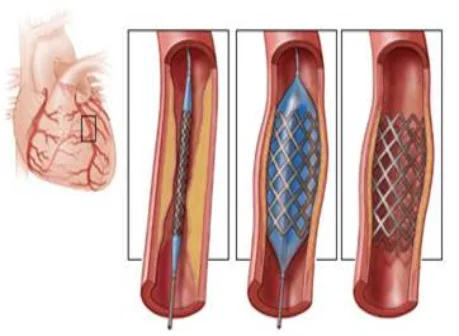

Pathophysiology

The development of coronary artery disease that progresses to Chronic Total Occlusion (CTO) is influenced by inflammation, endothelial dysfunction, and cholesterol accumulation. The process begins with the buildup of smooth muscle cells within the arterial wall, followed by macrophage accumulation that leads to plaque formation, intimal thickening, and eventually complete arterial blockage.

Pathophysiology

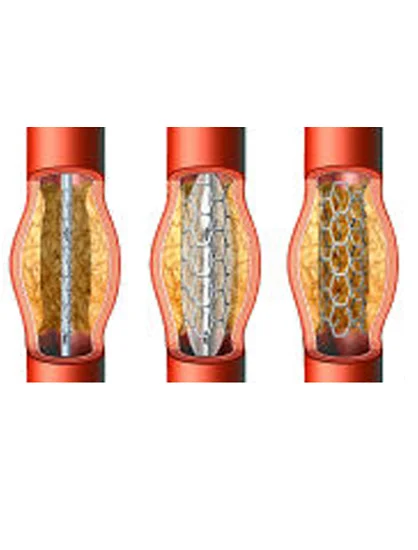

CTO PCI Procedure

CTO PCI Procedure

  • Symptomatic CTO patients traditionally required coronary artery bypass graft (CABG) surgery to restore blood flow.

  • Chronic total blockages have historically been among the most difficult coronary lesions to treat with PCI.

  • Modern devices and advanced PCI techniques have significantly improved procedural success in experienced centers.

  • Calcification within CTO lesions increases procedure complexity, prolongs treatment time, and may affect stent expansion.

  • CTOs can be crossed using intraplaque (luminal) tracking or extraplaque (subintimal) dissection techniques.

  • Antegrade approaches include antegrade wiring (AW) and antegrade dissection re-entry (ADR).

  • Retrograde techniques include retrograde wiring (RW) and retrograde dissection re-entry (RDR).

  • Calcium modification is often necessary using scoring balloons, cutting balloons, high-pressure balloons, rotational atherectomy, orbital atherectomy, or laser atherectomy.

During the Procedure

  • Patients receive sedation before the procedure begins.

  • Two catheters are inserted through the wrist or groin to provide access to the blocked artery.

  • Specialized guidewires and microcatheters are carefully advanced across the total blockage.

  • Modern guidewire technology provides greater precision and control during navigation.

  • In selected patients, a retrograde approach through collateral vessels may be used.

  • Collateral vessels naturally develop to bypass severe coronary blockages.

  • Patients remain awake enough to communicate with the medical team if discomfort occurs.

  • The procedure usually lasts 3–4 hours, with first-attempt success rates of approximately 85–90%.

  • Most patients return home the following day after routine evaluation.

During CTO Procedure

Success Rate

  • CTO PCI success rates at experienced centers range from approximately 60% to 90%.

  • Retrograde techniques may carry a slightly higher complication risk than standard angioplasty.

  • Treatment planning is individualized based on the patient's clinical condition and coronary anatomy.

  • Factors such as the location of the blockage, patient age, and associated medical conditions influence procedural success.

Patient Education

Contact your healthcare provider immediately if you experience any of the following after the procedure:

  • Swelling around the catheter insertion site.

  • Severe or persistent pain.

  • Signs of infection, such as redness, warmth, or discharge.

  • New skin rash or skin damage.

Lifestyle Recommandations

  • Avoid lifting heavy objects until advised by your doctor.

  • Stop smoking to reduce the risk of future coronary artery disease.

  • Follow a heart-healthy diet rich in fruits, vegetables, and whole grains.

  • Exercise regularly as recommended by your healthcare provider.

  • Maintain a healthy body weight and attend all follow-up appointments.
